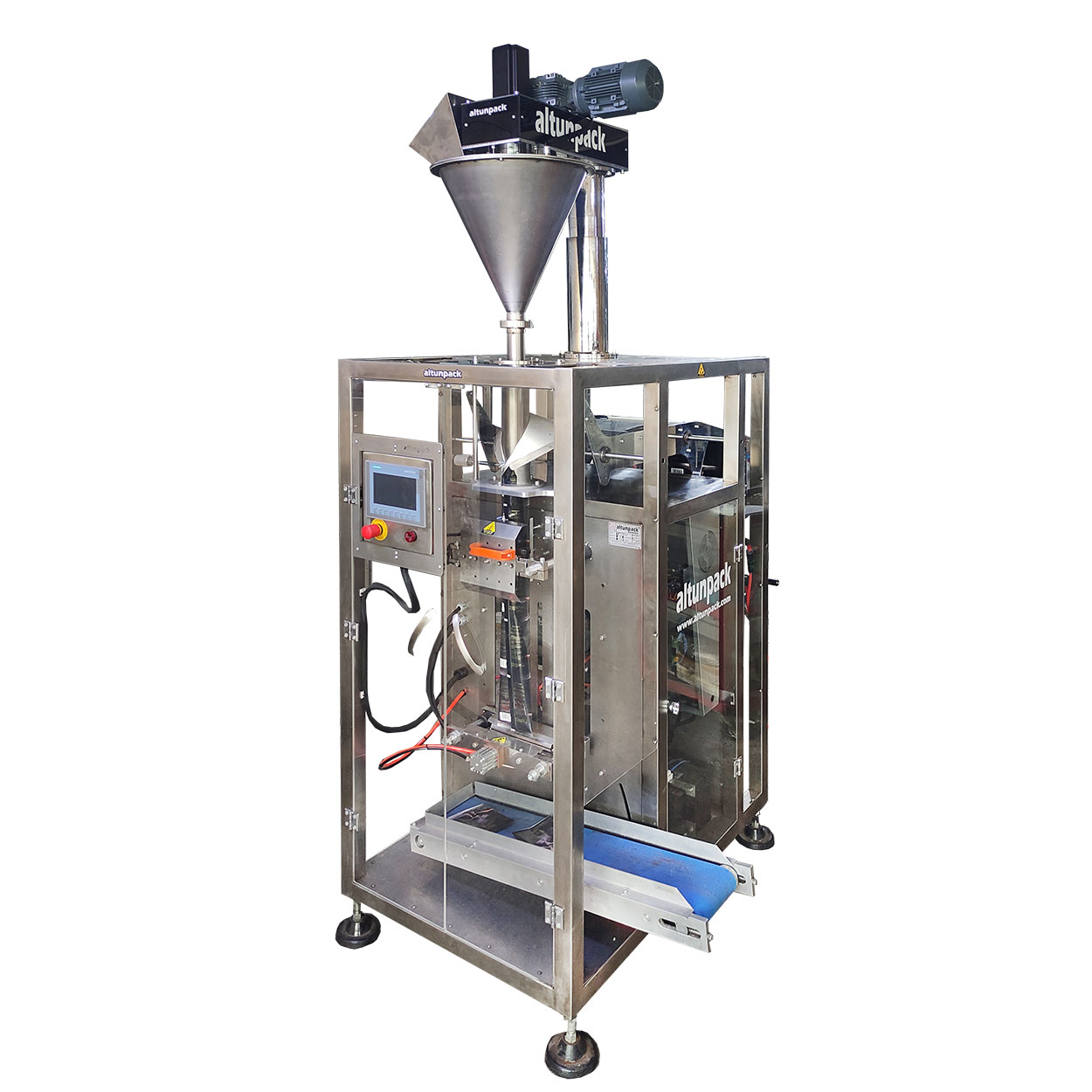

Screw Vertical Powder Filling Packaging Machine
Screw Vertical Powder Filling Packaging Machine
General Features
» Screw filling system
» Air shaft 3”
» Control from touch color panel
» Moving coil stand up to the collar provides end-to-end control.
» Precision smart motors are used in the filling screws.
» Built-in conveyor belt.
» Production record keeping.
» Advanced smart software.
» Software update over the Internet.
» Non-Stop or Start-stop production thanks to its advanced smart software.
» Free Operator training and support
| Technicial Specifications | |
| Stick Package Width | 120 mm |
| Stick Package Length Range | 70 - 190 mm |
| Stick Filling Weight | 50 gr. - 250 gr. |
| Filling System | Screw |
| Width Of Packaging Roll Film | 260 mm |
| Packing Roll Core / Tube Diameter | 76 mm - 3" rulo |
| Number Of Lines | 1 lines |
| Production Capacity | 30 packs / min. |
| Machine Frame / Body Quality | 304 quality stainless chrome steel |
| Dimensions | G.115 x U.150 X Y.230 cm |
| Weight | 550 kg. |
| Electricity Requirement | 380 V. 50 hz. 3.5 kw / s. |
| Motor Power | 0,75 KW. |
| Compressed Air Consumption | 125 l / d. |
| Working Pressure | 5 bar |
| Used Packaging Material | Laminated packaging, OPP, Coated, metallized. Between 40 and 90 gr./m² |
| Pistons | FESTO |
| Air conditioning unit | FESTO |
| Photocell | SICK |
| Driver | SIEMENS |
| PLC | SIEMENS |
| Touch screen | SIEMENS |
| Switchgear Materials | SIEMENS |
