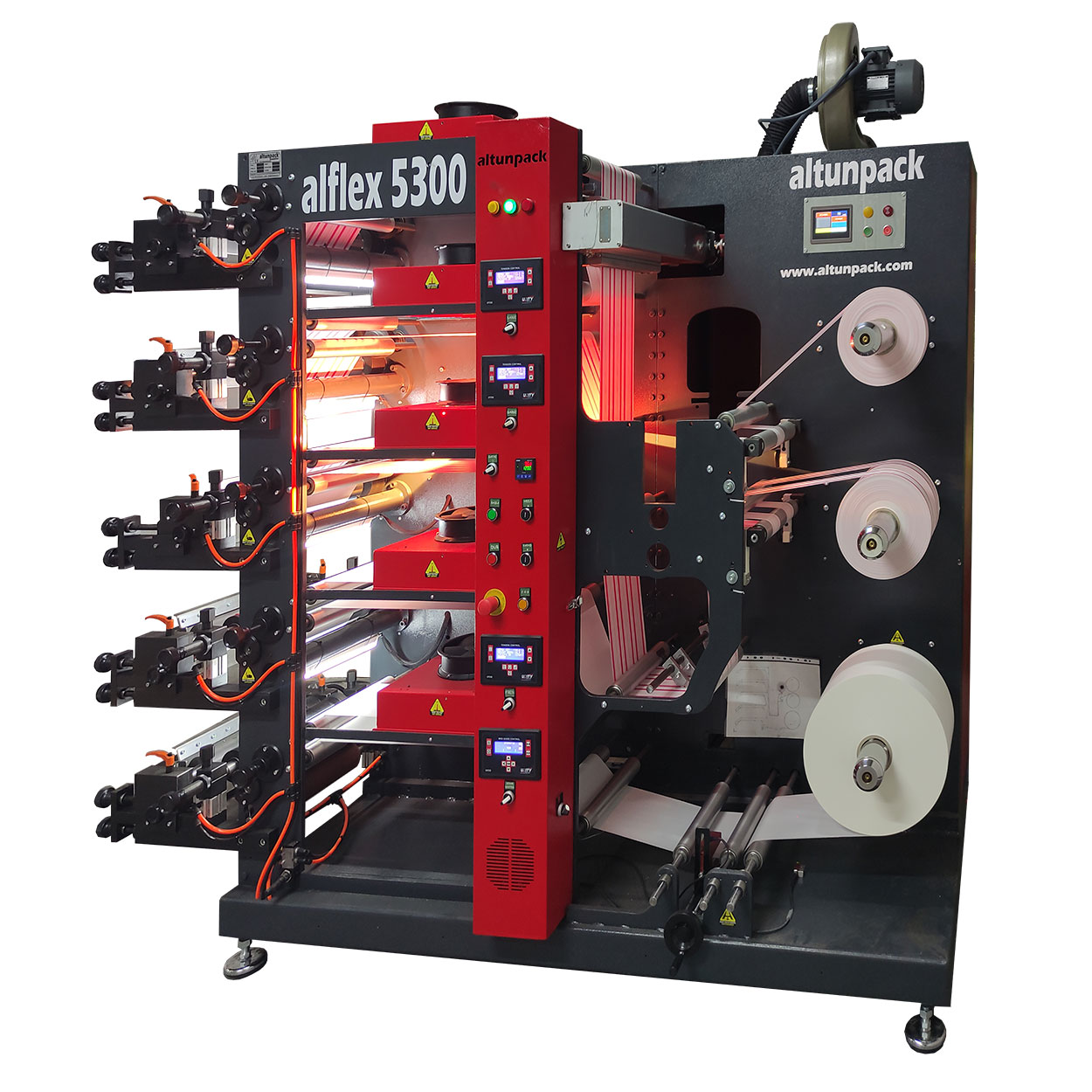

5 Color Flexo Printing Machine

5 Color Flexo Printing Machine
Altunpack Makine
5 Color Flexo Printing Machine General Features
» Via automatic in and out system control provides full control in tension.
» Easy-use with 2 control panels.
» Illumination in each unit.
» Automatic stop in goal quantity.
» By the individual drying for each color prevents undesirable mixing (contamination) of the colors.
» Easy removable paint tray system.
» Tray prevents dripping of the paint.
» Free-of-charge operator traning & support.
Technicial Specifications
Printing Width 300 mm
Number of Colors 5
Repetition 200 - 400 mm
Anilox Roller Ceramic Anilox Roller
Mixer Electric Motor
Dr. Blade System 0,20x30 Rakle
Automatic Printing Pneumatic
In Tension Control Magnetic Powder Brake / Digital Control
Out Tension Control Electromagnetic / Digital Control
Edge Control Automatic Edge Control
Mechanical Speed of the Machine 150 mt. / min.
Machine Chassis/Body Quality ST37 Steel Chassis / Static Powder Painted
Case Type Tower
Inter-Unit Transmission System Triger HSS
Register Control Sensitive Register Control during the Work, seperately for each color
Winding and Warping Air Shaft 76 mm 3 "
Meters Digital
Drying System Hot / Cold air drying
UV. Dryer 1 station for lacquer
Dimensions G.125 X U.220 X Y.190 CM
Weight 800 kg.
Electricity 220 V. 50 hz. 12 kw / h.
Engine Power 2.2 KW.
Compressed-air Consumption Just when it is needed, no consumes constantly
Working Pressure 6 bar
Packaging Material Used Laminated Packaging, OPP, Coated, Kraft, Metallized. etc.
PE, LDPE, MDPE, HDPE, PET, PP, OPP, BOPP, PA, Nonwoven,
Detailed Product Information
