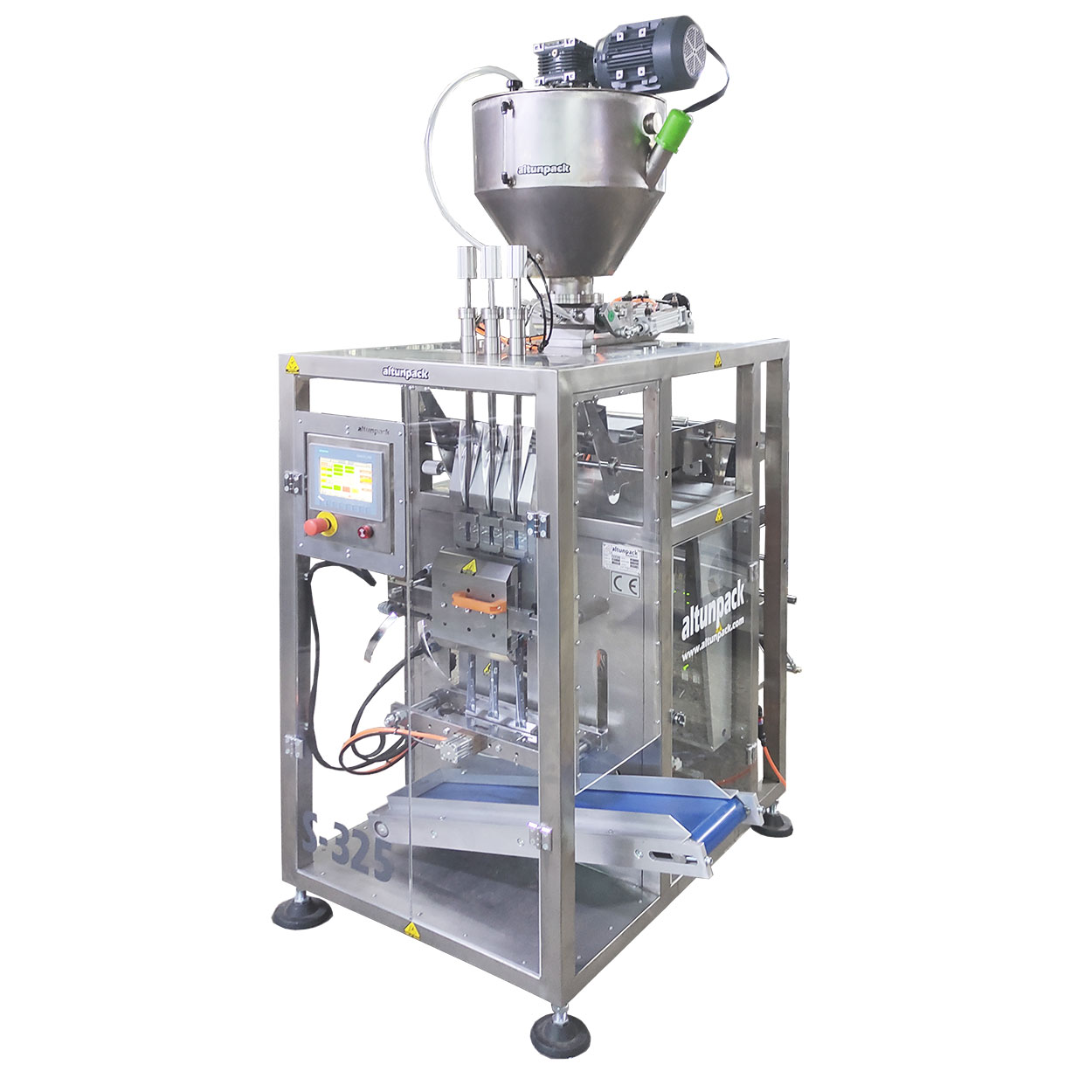

Stick Liquid Filling and Packing Machine

Stick Liquid Filling and Packing Machine
Altunpack Makine
Stick Liquid Filling and Packing Machine General Features
» Volumetric filling system
» Air Shaft 3 Hav
» Touch color control panel
» The movable coil stand provides end-to-end control.
» Motorized dosing unit
» Internal conveyor belt.
» Production record keeping.
» Advanced intelligent software.
» Software update over the Internet.
» Non-Stop or Start stop production thanks to advanced intelligent software.
» Free Operator training and support
Technicial Specifications
Stick Package Width (Fixed) 30 mm
Stick Package Length Range 40 -180 mm
Stick Filling Weight Range 1 gr. - 15 gr.
Filling System Volumetric
Width of Packaging Roll Film 200 mm
Packing Roll Core / Tube Diameter 76 mm - 3 rulo
Number of Lines 3 lines
Production Capacity 150 packs / min.
Machine Frame / Body Quality 304 quality stainless chrome steel
Dimensions G.110 X U.140 X Y.210 cm
Weight 430 kg.
Electricity Eequirement 220 V. 50 hz. 3.5 kw / s.
Motor Power 0,75 KW.
Compressed Air Consumption 125 l / d.
Working Pressure 5 bar
Used Packaging Material Laminated packaging, OPP, Coated, metallized. Between 40 and 90 g / m²
Pistons FESTO
Air conditioning unit FESTO
Photocell SICK
Driver SIEMENS
PLC SIEMENS
Touch screen SIEMENS
Switchgear Materials SIEMENS




Pistons FESTO
Air conditioning unit FESTO
Photocell SICK
Driver ABB
PLC FATEK
Switchgear materials SIEMENS
Detailed Product Information
» Recommended compressor values: 300 L / d with 300 LT tank. should have air production capacity.
» The position of the compressor should be placed as close to the working position as possible.
» If the compressor is remote, the air hose from the compressor to the machine must be 1/2.
