Helezon Toz Aktarma Makinesi

Helezon Toz Aktarma Makinesi
Altunpack Makine
Helezon Toz Aktarma Makinesi  General Features

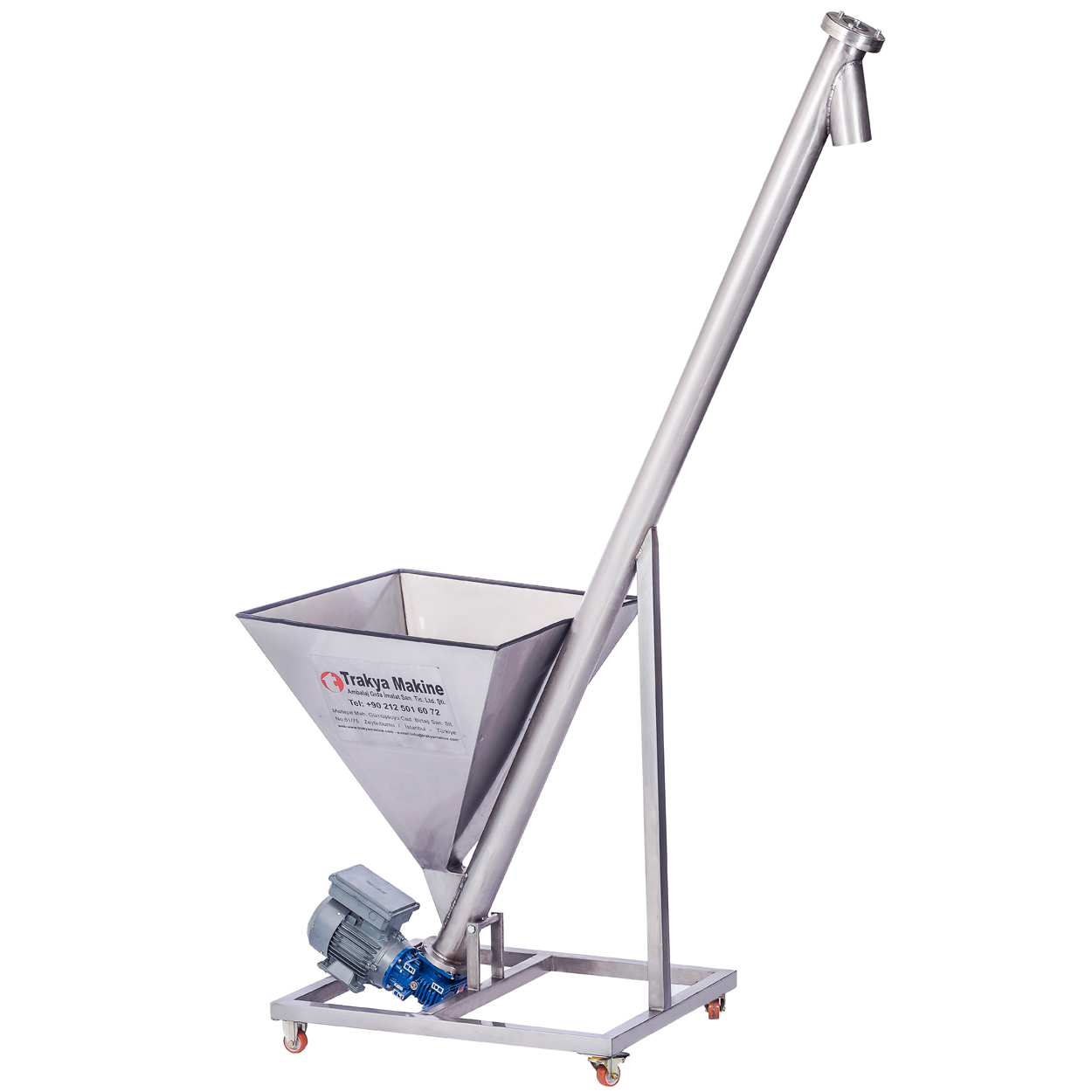

Spiral is an auxiliary equipment used in transferring products such as powder and sugar from one place to another.
Detailed Product Information
Altunpack Makine 2018 © All Rights Reserved.
  Language
Altunpack Makine Altunpack Makine

Helezon Toz Aktarma Makinesi

Helezon Toz Aktarma Makinesi
Altunpack Makine
Helezon Toz Aktarma Makinesi General Features
Spiral is an auxiliary equipment used in transferring products such as powder and sugar from one place to another.



Technicial Specifications
Print Paper Width 300 mm
Number Of Colors 4
Repetition 200 - 400 mm
Anilox Roller Ceramic Anilox Roller
Mixer Electric Motor Operated
Dr. Blade System 0,20x30 Doctor Knife
Automatic Cliché Removing System Pneumatic
In Tension Control Magnetic Powder Brake / Digital Control
Out Tension Control Electromagnetic / Digital Control
Machine Mechanical Speed 150 mt. / min.
Machine Chassis/Body Quality ST37 Steel Chassis / Static Powder Painted
Chassis Type Tower
Transmission System Trigger HSS Timing Belt
Register Control Sensitive Register Control during the Work, seperately for each color
In and Out Air Mill 76 mm 3 "
Meter Counter Digital
Drying System Hot / Cold Weather Drying
Dimensions G.125 X U.220 X Y.190 cm
Weight 800 kg.
Electricity 220 V. 50 hz. 9.5 kw / h.
Engine Power 2.2 kw.
Compressed-air Consumption Just when it is needed, no consumes constantly
Operation Pressure 6 bar
Packaging Material Used Laminated packaging, OPP, Coated, kraft, metallized. etc.
PE, LDPE, MDPE, HDPE, PET, PP, OPP, BOPP, PA, Nonwoven

WHAT IS FLEXO PRINTING TECHNIQUE AND HOW TO DO?

Flexo printing is the fastest and most economical printing system.

Flexo printing is the most common printing used in packaging printing.

Flexo printing on rough, uneven surfaces; Carton, kraft, corrugated board, plastic films forming all the flexible packaging are applied on aluminum foil.



altunpack has designed flexo presses to print prints such as wet tissue paper, stick candy packaging.

When choosing Flexo printing machine; 2 color flexo printing machine, 3 color flexo printing machine, 4 color printing machine or 5 color flexo printing machine. Which colors should be chosen? 2-color flexo printing machine with 1 color and 2-color color printing allows 2-color flexo printing machines are generally preferred by companies that produce sugar. The reason is the development of the market in that direction and the lack of advertising space of the wrapped sugar. It is more convenient to print up to 2 colors as the print area of ​​the wrapped sugar is small. The 3 color flexo printing machines are preferred for the printed candy, stick candy and stick salt or colonial handkerchief prints. 3 color flexo printing machines offer up to 3 colors printing. Up to 3 colors can make logo print. 4 color flexo printing machines are the most preferred printing machine for the above-mentioned examples. The reason is 1 color, 2 colors, 3 colors, 4 color printing as well as offers the possibility to print photos. 4 main colors (C, M, Y, K (Cyan, Magenta, Yellow, Black) Yellow, Red, Blue and black, these main colors.

In addition to the photo, 5-color flexo printing machines allow the varnishing process called UV lacquer. UV lacquer treatment gives the print a more vivid and glossy appearance, and also prevents scratching.

Felxo printing working principle;

Flexo printing ink put on the paint tray is transferred to the plate by the cells of ceramic anilox. The stripping blade (dr. Blade) removes excess paint from the ceramic anilox, leaving only the paint on cells above the ceramic anilox.

The surface of ceramic aniloxes are covered with cells that are too small to be visible. These cells are selected in different characteristics according to the type of printing. For example, if the floor is to be printed, the ceramic anilox with a low density and low volume should be selected. 120L / CM 12 vol. 120 is the number of cells within 1 cm square. If the vol determines the volume of that cell to how many gr. determines whether to spend the paint. If the photo is to be printed, then the opposite value should be selected. 300 L / CM as

(As in the example, one of the developments in flexo printing is anilox rollers. The engraving is a new technology product which is extremely suitable for the plasma-coated anilox rollers made using laser.

The paint remaining on the ceramic anilox is transferred to the plate. This paint that adheres to the plate is transferred to the printed packaging and this output takes place in a short time. In flexo printing, solvent based paint is generally preferred. Solvent-based paints are volatile and can be dried in a very short time. Solvent dyeing is preferred because it does not come out of the printing surface like water-based paint and brighter color than water-based paint.

Cliche; It is a flexible mold and adhered to the printing drum called the platemaking cylinder with a special double-sided tape.

In flexo printing, clogs washed with water are very common and easy to obtain. Ozone-resistant printing plates are one of the newest discoveries that prevent the ink from cracking ahead of time.

altunpack machine has produced solid and durable machines worldwide with a large number of happy customers are guru. Even 15 years ago, our machines are still running smoothly.

All the machines we have produced are ISO 9001: 2008 Quality Management System and CE Safety Certified.

altunpack machine provides 4 years warranty to the flexo printing machines that it has produced.

Electronic parts brands and business partners used in our machines; PLC; Fatek / Siemens Touch panel; Fatek / Siemens Photocell; SICK Motor drives; ABB Power supplies; OMRON fuses; Allen-Bradley, as well as world-recognized parts are high quality.
